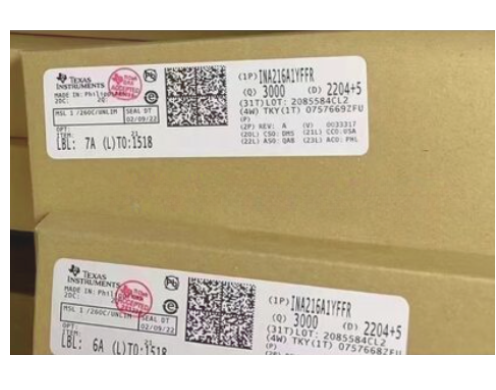

INA216A1YFFR

INA216A1YFFR Features

• Accuracy: The INA216A1YFFR boasts an accuracy of ±0.01%, ensuring precise current measurements.
• Operational Amplifier Type: It is an operational amplifier specifically designed for current monitoring applications.
• Common Mode Rejection Ratio (CMRR): The device features a high CMRR of 90 dB, reducing noise and improving signal integrity.
• Low Input Bias Current: With an input bias current of just 3 μA, it minimizes the impact of external currents on measurement accuracy.
• Low Input Offset Voltage: The input offset voltage (Vos) is 100 μV, providing a stable baseline for accurate measurements.
• Lead-Free and RoHS3 Compliant: The part is lead-free and compliant with ROHS3 standards, ensuring environmental sustainability.
• Surface Mount Technology (SMT): Designed for surface mount technology (SMT), it offers compact packaging in a 4-UFBGA or DSBGA package.

INA216A1YFFR Applications

1. Automotive Systems: The INA216A1YFFR is ideal for automotive applications where precise current monitoring is crucial, such as in battery management systems or fuel gauges.
2. Industrial Automation: It is used in industrial automation to monitor currents in motors, pumps, and other machinery.
3. Medical Devices: Its high accuracy makes it suitable for medical devices requiring precise current measurements.

1. Consumer Electronics: The IC can be used in consumer electronics for monitoring power consumption in devices like smartphones or laptops.
2. Aerospace: Its reliability and precision make it suitable for aerospace applications where accurate current monitoring is essential.

INA216A1YFFR Alternative Parts

If the INA216A1YFFR is not available or if you need alternative solutions, consider the following parts from Texas Instruments:

- INA217: Offers similar performance but with different pin configurations.
- INA218: Provides higher accuracy but may have different packaging options.


INA216A1YFFR Embedded Modules

The INA216A1YFFR is often used in various embedded modules designed for specific applications:
- Automotive Power Management Modules: Integrated into modules that manage power distribution within vehicles.
- Industrial Control Systems: Embedded in control systems that monitor and regulate industrial processes.
- Medical Instrumentation Modules: Used in modules that monitor vital signs or power consumption in medical instruments.

In summary, the INA216A1YFFR is a reliable and accurate current monitor IC suitable for a wide range of applications requiring precise current measurements. Its robust design and compliance with environmental standards make it an excellent choice for various industries including automotive, industrial automation, and medical devices.
