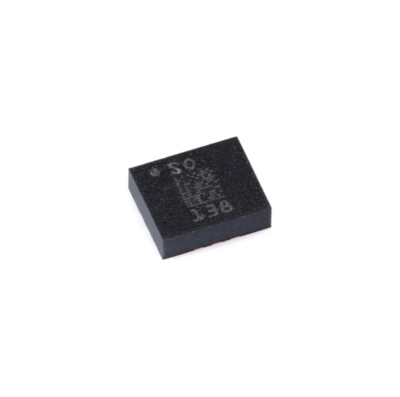

The LSM6DSOTR is a high-performance 6-axis inertial measurement unit (IMU) module featuring a 3-axis accelerometer and a 3-axis gyroscope. It is designed to provide accurate motion sensing and motion tracking capabilities for various applications, including consumer electronics, industrial equipment, and Internet of Things (IoT) devices.
Key Features
- 6-Axis Motion Sensing: Combines a 3-axis accelerometer and a 3-axis gyroscope to provide comprehensive motion sensing capabilities.
- High Accuracy: Offers high-precision motion tracking and orientation detection for precise motion analysis and control.
- Low Power Consumption: Optimized power management architecture for efficient energy usage in battery-powered applications.
- Digital Output: Provides digital output data over an I2C or SPI interface for seamless integration with microcontrollers and other devices.
- Embedded Temperature Sensor: Integrated temperature sensor for accurate environmental monitoring and compensation.
Application
- Smartphones and Wearables: Ideal for motion-based user interfaces, activity tracking, and orientation-aware applications.
- Industrial Monitoring and Control: Suitable for vibration monitoring, tilt sensing, and motion analysis in industrial environments.
- IoT Devices: Enables motion-aware features and context-awareness in IoT devices and smart systems.
Equivalent
For similar functionalities, consider these alternatives to the LSM6DSOTR:
- MPU-6050: This 6-axis IMU module offers similar motion sensing capabilities and is widely used in motion-based applications.
- BMX055: A 9-axis sensor combining a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer for comprehensive motion and orientation sensing.
Specifications
| Operating Temp Min Celsius |
-40.0 |
Operating Temp Max Celsius |
85.0 |
| ECCN US |
EAR99 |
ECCN EU |
NEC |
| Packing Type |
Tape And Reel |
RoHs compliant |
Ecopack2 |
| Grade |
Industrial |
Package Name |
VFLGA2.5X3X.86 14L P.5 L.475X.25 |
***************************************************************
