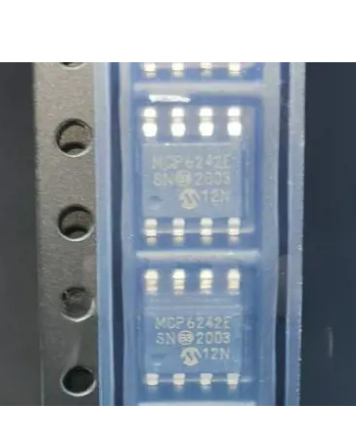

The MCP6242-E/SN is a dual operational amplifier optimized for high-performance, low-power operations. It provides excellent performance for precision analog circuits, instrumentation, sensor interface, signal conditioning, and control applications.
MCP6242-E/SN Features
- MCP6242-E/SN is a dual operational amplifier: This feature ensures that two amplifiers are integrated into one package, making it suitable for applications requiring multiple amplification stages.
- Wide single-supply voltage range of 1.8V to 5.5V: This feature allows the MCP6242-E/SN to operate in a variety of power supply configurations, offering flexibility and ease of use.
- Low input offset voltage and low noise: The MCP6242-E/SN provides excellent signal quality by minimizing unwanted offsets and noise, ensuring accurate amplification and reduced distortion.
- High unity gain bandwidth of 900 kHz: This feature enables the amplifier to operate effectively over a wide range of frequencies, making it suitable for high-speed applications.
- Designed for low-power applications with a quiescent current of 80 μA/channel: The MCP6242-E/SN is optimized for battery-powered or low-power applications where power consumption is critical, such as in portable instruments and devices.
MCP6242-E/SN Applications
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
MCP6242-E/SN Advantages and Disadvantages
Advantages
- High-performance operational amplifiers with low power consumption: The MCP6242-E/SN offers excellent performance, precision, and reliability while minimizing power consumption, making it an attractive option for battery-powered or low-power applications.
Disadvantages
- Sensitive to ESD and static electricity due to its SOIC-8 package: The MCP6242-E/SN is susceptible to electrostatic discharge (ESD) and static electricity, requiring careful handling and installation to avoid damage.
MCP6242-E/SN Specifications
| Package |
Tube |
Product Status |
Active |
| Amplifier Type |
General Purpose |
Number of Circuits |
2 |
| Output Type |
Rail-to-Rail |
Slew Rate |
0.3V/µs |
| Gain Bandwidth Product |
550 kHz |
Current - Input Bias |
1 pA |
| Voltage - Input Offset |
5 mV |
Current - Supply |
50µA (x2 Channels) |
| Current - Output / Channel |
23 mA |
Voltage - Supply Span (Min) |
1.8 V |
| Voltage - Supply Span (Max) |
5.5 V |
Operating Temperature |
-40°C ~ 125°C (TA) |
| Mounting Type |
Surface Mount |
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package |
8-SOIC |
Base Product Number |
MCP6242 |
MCP6242-E/SN Equivalents
For similar functionalities, consider these alternatives to the MCP6242-E/SN:
- MCP6241-E/SN: This operational amplifier is a single-channel equivalent with similar specifications and characteristics as the MCP6242-E/SN.
MCP6242-E/SN Frequently Asked Questions
Q: What is the operating voltage range of the MCP6242-E/SN?
A: The operating voltage range for the MCP6242-E/SN is 1.8V to 5.5V.
Q: How much power does the MCP6242-E/SN consume?
***************************************************************
