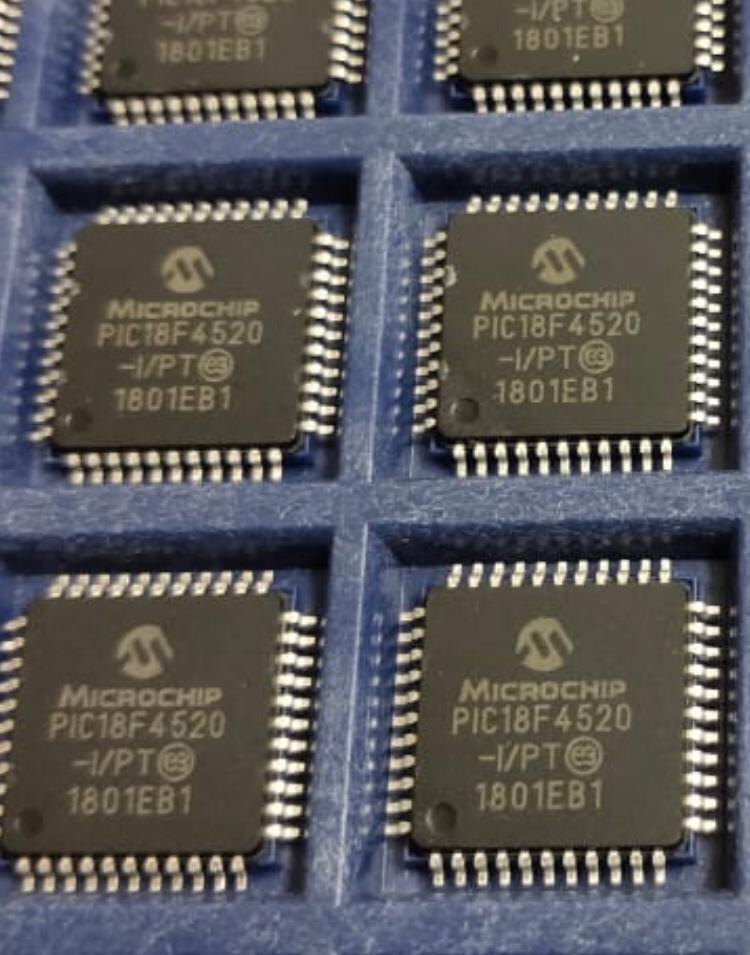

The PIC18F4520-I/PT is a high-performance, enhanced flash microcontroller with nanoWatt technology.The device offers a wide range of features including 32KB of program memory, 1536 bytes of RAM, and multiple communication interfaces,making it ideal for various embedded applications.
PIC18F4520-I/PT Key Features
- High-Performance Microcontroller: The PIC18F4520-I/PT offers enhanced performance capabilities for demanding embedded applications.
- 32KB Program Memory: Sufficient program memory for storing complex firmware and code.
- NanoWatt Technology: Enables low power consumption and extended battery life in portable applications.
- Multiple Communication Interfaces: UART, SPI, and I2C interfaces for versatile connectivity options.
- Analog Input Channels: Integrated analog input channels for sensor interfacing and analog signal processing.
- Enhanced Timer Modules: Flexible timer modules for precise timing control in various applications.
PIC18F4520-I/PT Application
- Embedded Systems: Suitable for developing embedded systems in industrial automation, IoT, and robotics.
- Consumer Electronics: Ideal for consumer electronic products requiring microcontroller intelligence.
- Automotive Electronics: Used in automotive applications for engine control, dashboard systems, and more.
Functionality
The PIC18F4520-I/PT is a versatile microcontroller with advanced features for handling complex tasks in embedded systems. It provides reliable processing power and connectivity options for diverse applications.
Usage Guide
- Power Supply: Connect VDD (Pin 1) to the positive power supply and VSS (Pin 2) to ground.
- Communication Setup: Configure UART, SPI, or I2C interfaces for data exchange as per your application requirements.
- I/O Configuration: Utilize the I/O ports for interfacing with external devices and sensors.
PIC18F4520-I/PT Specifications
| Program Memory Size (KB) |
32 |
RAM (bytes) |
1536 |
| Data EEPROM (bytes) |
256 |
Pin Count |
40 |
| Operation Voltage Max.(V) |
5.5 |
Operation Voltage Min.(V) |
2 |
| Timers |
1 x 8-bit - 3 x 16-bit |
Max ADC Resolution (bits) |
10 |
| ADC Channels |
13 |
Zero Cross Detect |
No |
| Number of Comparators |
2 |
SPI |
1 -SPI |
| I2C |
1 -I2C |
Stand alone PWM |
0 |
| Low Power |
No |
Numerically Controlled Oscillator (NCO) |
0 |
| Data Signal Modulator (DSM) |
0 |
|
|
***************************************************************
