MAX3221CAE: A Comprehensive Analysis of High - Performance RS-232 Interface Chip

Power Characteristics

• Wide Voltage Range: Operates over a supply voltage of +3.0V to +5.5V, adapting to various power environments.
• Low Power Mode: Enables a shutdown mode with supply current as low as 1μA, leveraging the AutoShutdown™ feature. When the receiver input detects no valid signal level (e.g., RS-232 cable disconnection or connected peripheral transmitter shutdown), onboard power and drivers turn off. The system restarts automatically when any RS-232 receiver input receives a valid level.
• Simple Capacitor Requirement: Only requires a 0.1μF capacitor for 3.3V operation.

Functional Features

• Integrated Charge Pump Circuit: Simplifies power requirements by eliminating the need for ±12V supplies, supporting operation from a single +3.3V or +5V supply.
• Data Transmission Capability: Guarantees a data rate of 120kbps under worst-case conditions (3kΩ load in parallel with 1000pF), and typically operates at 235kbps.

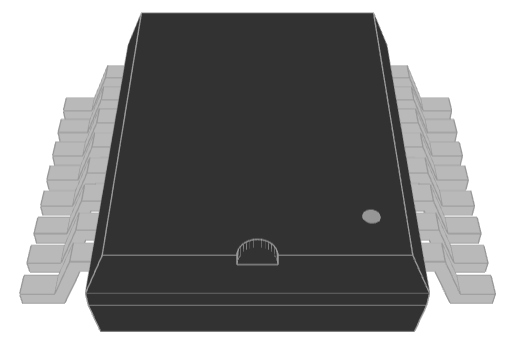

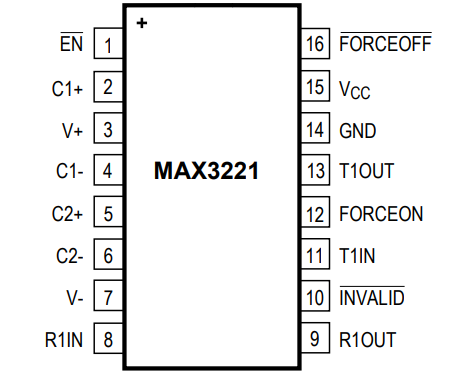

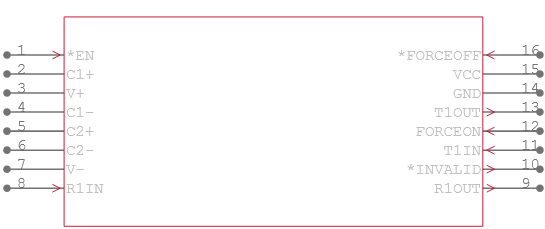

• Pins and Package: Adopts a 16-pin SSOP package with an operating temperature range of 0°C to +70°C.

Interface Under Control of PMU of MAX3221CAE

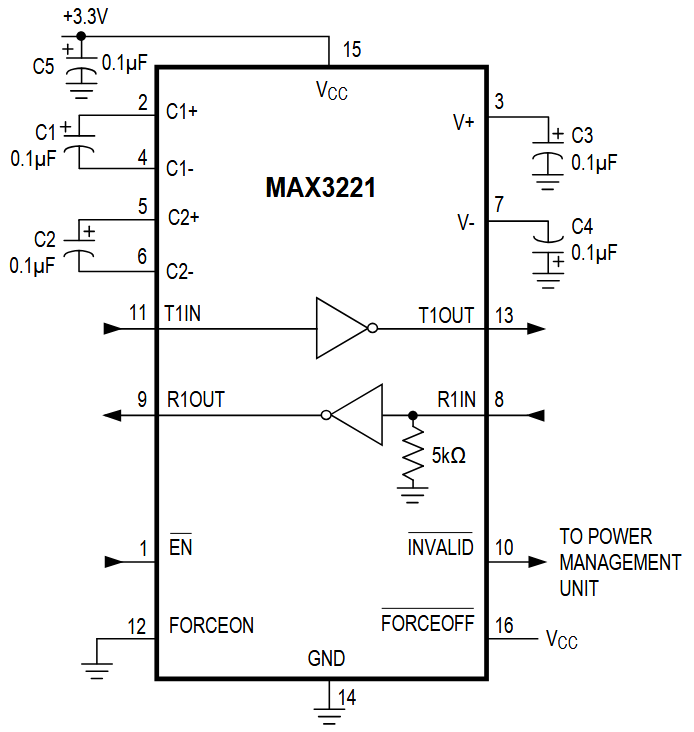

Test Circuit Diagram of MAX3221CAE

Advantage and Disadvantage of MAX3221CAE

Advantages

• 1μA Supply Current in Shutdown: When no valid RS-232 signals are detected for 30μs (e.g., cable disconnection or peripheral shutdown), the device enters AutoShutdown, significantly extending battery life in portable devices.
• Automatic Wake-Up: The system restarts immediately upon detecting a valid input signal, eliminating manual intervention and optimizing power efficiency.

• Dual Charge-Pump Integration: Generates ±5.5V from a single +3.0V to +5.5V supply, eliminating the need for a ±12V power source. Only 0.1μF capacitors are required for 3.3V operation, reducing component count and board space.
• Wide Voltage Compatibility: Operates directly from 3.3V or 5V supplies, compatible with common battery types (e.g., lithium, AA/AAA) and USB power.

• Guaranteed Data Rate: Maintains 120kbps under worst-case loads (3kΩ || 1000pF) and supports up to 235kbps typically, ensuring compatibility with PC communication software (e.g., Laplink).
• Robust Signal Levels: Transmitter outputs swing ±5.0V (typical ±5.4V) to support long-distance transmission (e.g., 15 meters) with minimal degradation.

• Software-Controlled Shutdown: Can be managed via FORCEOFF, FORCEON, and INVALID pins for integration with power management units (PMUs) or microcontrollers.
• Logic Compatibility: Directly interfaces with 5V logic families (ACT, HCT CMOS, TTL), enabling seamless connection with various MCUs.

• 16-Pin SSOP Package: Suits space-constrained designs like handheld devices and portable diagnostics.
• Industrial Temperature Support: Operates from 0°C to +70°C (commercial grade), suitable for standard environmental conditions.

Disadvantages

• 1 Driver/1 Receiver Configuration: Less suitable for applications requiring multiple simultaneous RS-232 connections (e.g., multi-sensor systems). For higher channel counts, the MAX3223 (2 drivers/2 receivers) or MAX3243 (3 drivers/5 receivers) are better alternatives.

• Incompatibility with Mice: AutoShutdown must be disabled (FORCEON/FORCEOFF tied to VCC) when driving serial mice, as the feature may interfere with continuous power requirements.

• 0°C to +70°C Operation: Lacks support for extended industrial temperatures (-40°C to +85°C), which are available in the MAX3221EAE/EUE models but require switching to a different part number.

• Voltage-Dependent Capacitor Values: At 4.5V to 5.5V, C1 must be reduced to 0.047μF and C2-C4 increased to 0.33μF, adding complexity to capacitor selection for non-3.3V systems.

• Limited ESD Specs: The datasheet mentions output short-circuit protection but does not explicitly detail ESD ratings, requiring external protection in high-noise environments.

Battery-Powered Equipment

• Low Power Consumption: The supply current is only 1μA in AutoShutdown mode, significantly extending battery life. When the RS-232 cable is disconnected or the peripheral transmitter is turned off, the device automatically enters sleep mode and quickly wakes up upon detecting a valid signal without manual intervention.
• Wide Voltage Adaptability: Supports a power input range of 3.0V to 5.5V, compatible with various battery types (e.g., lithium batteries, AA/AAA battery packs).
• Simplified Design: Integrated dual charge-pump circuitry eliminates the need for a ±12V power supply. Only 0.1μF capacitors are required for 3.3V operation, reducing the number of external components and board space.

Hand-Held Equipment

• Balance of Low Power and High-Efficiency Transmission: Guarantees a data rate of 120kbps (typically 235kbps), meeting real-time transmission needs while reducing standby power consumption via AutoShutdown.
• Miniaturized Package: Adopts a 16-pin SSOP package, offering a compact size suitable for space-constrained handheld device layouts.
• Anti-Interference Capability: The RS-232 interface is compatible with standard levels, effectively resisting electromagnetic interference to ensure stable data transmission in mobile scenarios.

Peripherals

• Multi-Scenario Compatibility: Supports 3.0V to 5.5V power supplies, adapting to different host device power schemes (e.g., 5V USB power from PCs or 3.3V power from embedded systems).
• Flexible Logic Interface: Compatible with ACT, HCT CMOS, and TTL logic families, directly interfacing with master control chips of different voltage levels (e.g., 5V MCUs or 3.3V ARM processors).
• Reliability Design: The transmitter output voltage swing reaches ±5.0V (typically ±5.4V), ensuring signal integrity over long distances (e.g., within 15 meters). It also features short-circuit protection and ESD immunity.

Portable Diagnostics Equipment

• Fast Wake-Up and Real-Time Response: The wake-up time from AutoShutdown mode is approximately 250μs, meeting the demand for sudden data transmission in diagnostic scenarios (e.g., parameter reading upon device connection).
• Wide Temperature Adaptability: Operates in the temperature range of 0°C to +70°C, ensuring stability in conventional environments. Combined with industrial-grade design (e.g., anti-vibration, moisture resistance), it is suitable for field or on-site diagnostics.
• Multi-Device Interconnection: Despite being a 1-driver/1-receiver configuration, it can be expanded via parallel connections to drive multiple receivers or mice (similar to the mouse-driving capability of MAX3243), adapting to multi-sensor data collection in diagnostic devices.

Other Potential Applications

• IoT Gateways: Serves as an RS-232 to MCU interface, waking up periodically in low-power mode to receive sensor data and transmit it to the master control chip.
• Smart Home Control Devices: Connects to serial sensors (e.g., temperature and humidity sensors), entering sleep mode when no data is transmitted to reduce overall system power consumption.
• Educational and Experimental Equipment: Used as a serial communication module in teaching experiment boards, simplifying power design while helping students understand low-power circuit principles.
