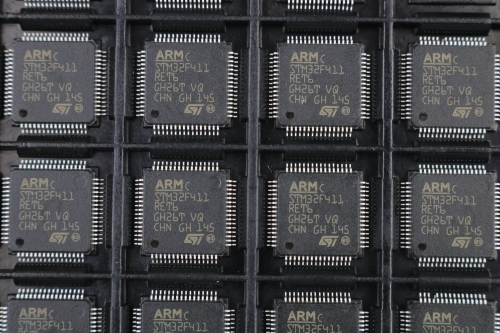

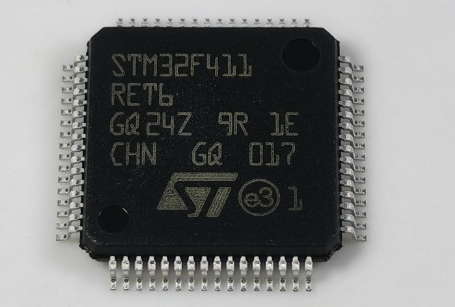

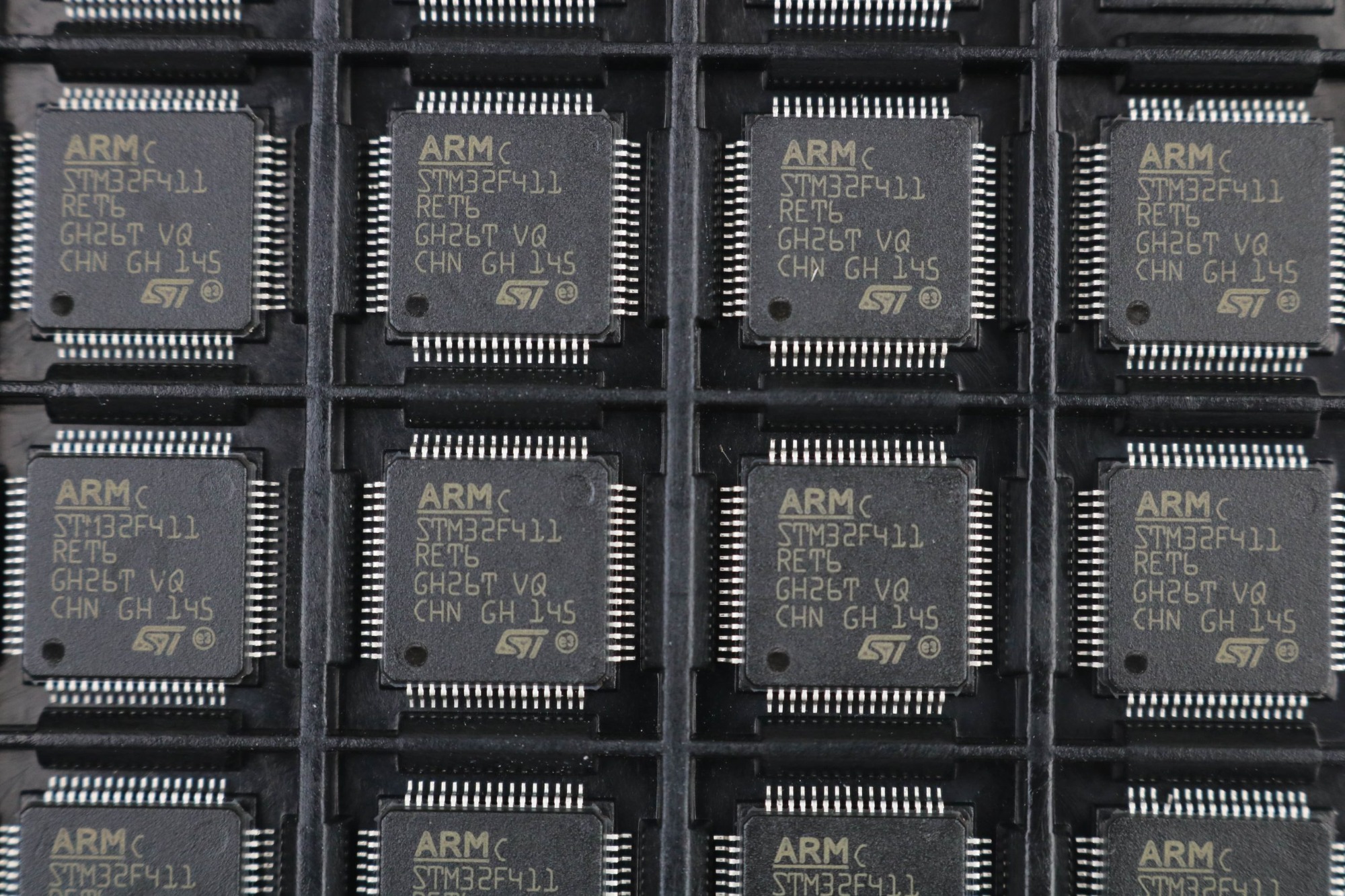

The STM32F411RET6 is a microcontroller optimized for high-performance and low-power consumption. It provides excellent performance for a wide range of embedded control and processing tasks.
Features
Dynamic Efficiency Line with BAM (Batch Acquisition Mode): The STM32F411RET6 has a power supply range of 1.7 V to 3.6 V, operating temperature range of -40°C to 85/105/125 °C, and features up to 512 Kbytes of Flash memory.
High-Performance ARM Cortex-M4 Core: The STM32F411RET6 is equipped with a high-performance ARM Cortex-M4 core clocked at up to 80 MHz.
FIFO Memory Interface: The microcontroller has a FIFO memory interface for improved data transfer and reduced latency.
High-Speed SPI, I2C, and USART Interfaces: The STM32F411RET6 features high-speed SPI (up to 30 Mbps), I2C (up to 1 Mbps), and USART interfaces for efficient communication with other devices.
Multiple Analog and Digital Peripherals: The microcontroller has multiple analog and digital peripherals, including up to 14-bit resolution ADC, DAC, and comparator.
Applications
Industrial Automation: The STM32F411RET6 can be used for industrial automation control systems, robot control, and data acquisition.
Medical Devices: The microcontroller is suitable for use in medical devices such as patient monitoring systems, insulin pumps, and surgical instruments.
Automotive Systems: The STM32F411RET6 can be used in automotive systems such as body electronics, Chassis control, and infotainment systems.
Consumer Electronics: The microcontroller is suitable for use in consumer electronics, smart home devices, and wearable technology.
Specifications
Product Attribute
Attribute Value
STMicroelectronics
Product Category:
ARM Microcontrollers - MCU
RoHS:
STM32F411RE
SMD/SMT
LQFP-64
ARM Cortex M4
512 kB
32 bit
12 bit
100 MHz
50 I/O
128 kB
1.7 V
3.6 V
- 40 C
+ 85 C
Tray
Analog Supply Voltage:
1.7 V to 3.6 V
Brand:
STMicroelectronics
Data RAM Type:
RAM
Interface Type:
I2C, SPI, USART, USB
Length:
10 mm
Moisture Sensitive:
Yes
Number of ADC Channels:
16 Channel
Processor Series:
STM32F411xE
Product:
MCU+FPUs
Product Type:
ARM Microcontrollers - MCU
Program Memory Type:
Flash
960
Subcategory:
Microcontrollers - MCU
Tradename:
STM32
Watchdog Timers:
Watchdog Timer
Width:
10 mm
Unit Weight:
0.012088 oz
***************************************************************
