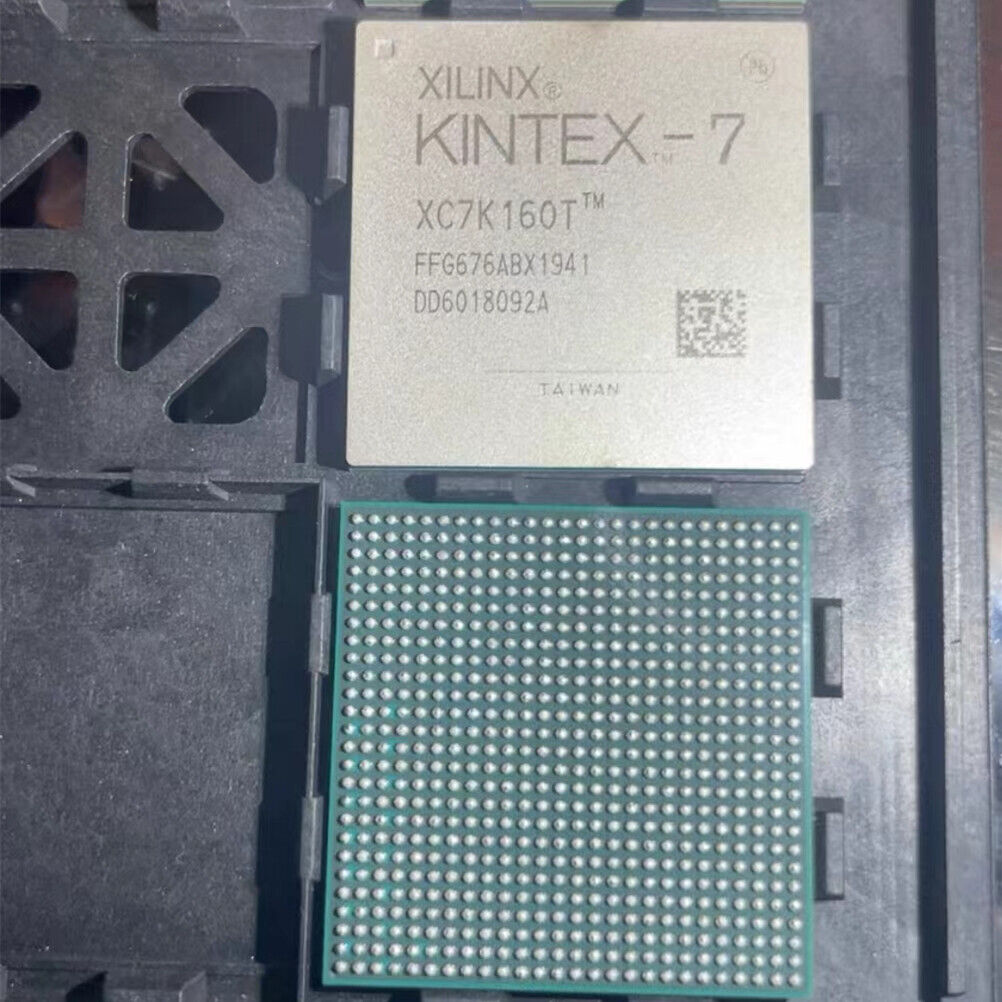

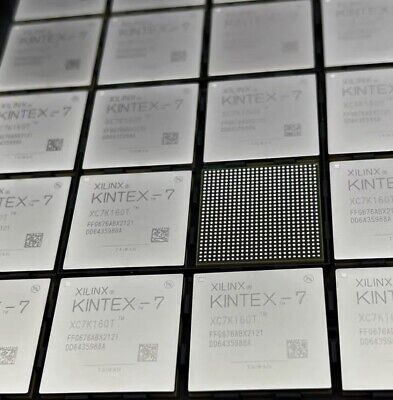

The XC7K160T-2FFG676I is a Xilinx Kintex-7 FPGA device with 160,000 logic cells, featuring advanced programmable logic capabilities for high-performance applications. This FPGA offers a rich set of features and resources suitable for complex digital design implementations.
Key Features
- 160,000 Logic Cells: Offers a large number of programmable logic cells for implementing complex designs.
- High-Performance Architecture: Utilizes advanced architecture for high-speed and high-throughput applications.
- Programmable I/Os: Provides flexible I/O configurations to interface with external components and systems.
- Transceivers: Integrated transceivers support high-speed serial communication protocols for data exchange.
- Embedded Memory: Includes on-chip memory blocks for data storage and processing.
Application
- High-Performance Computing: Suitable for applications requiring high computational capabilities and fast data processing.
- Signal Processing: Used in signal processing systems for real-time data analysis and manipulation.
- Telecommunications: Ideal for telecommunications infrastructure and networking equipment.
Equivalent
For similar functionalities, consider these alternatives to the XC7K160T-2FFG676I:
- XC7A200T-2FBG676I: A Xilinx Artix-7 FPGA with similar logic capacity and performance characteristics suitable for mid-range applications.
- XC7Z030-3FBG676I: This Zynq-7000 series FPGA from Xilinx combines FPGA fabric with ARM Cortex-A9 processing for embedded applications.
Specifications
| Product Category |
FPGA - Field Programmable Gate Array |
RoHS |
Details |
| Series |
XC7K160T |
Number of Logic Elements |
162240 LE |
| Adaptive Logic Modules - ALMs |
25350 ALM |
Embedded Memory |
11.43 Mbit |
| Number of I/Os |
400 I/O |
Supply Voltage - Min |
970 mV |
| Supply Voltage - Max |
1.03 V |
Minimum Operating Temperature |
- 40 C |
| Maximum Operating Temperature |
+ 100 C |
Data Rate |
12.5 Gb/s |
| Number of Transceivers |
8 Transceiver |
Mounting Style |
SMD/SMT |
| Package / Case |
FCBGA-676 |
Brand |
Xilinx |
| Distributed RAM |
2188 kbit |
Embedded Block RAM - EBR |
11700 kbit |
| Maximum Operating Frequency |
640 MHz |
Moisture Sensitive |
Yes |
| Number of Logic Array Blocks - LABs |
12675 LAB |
Operating Supply Voltage |
1.2 V to 3.3 V |
| Product Type |
FPGA - Field Programmable Gate Array |
Factory Pack Quantity |
1 |
| Subcategory |
Programmable Logic ICs |
Tradename |
Kintex |
| Unit Weight |
3.506996 oz |
|
***************************************************************
