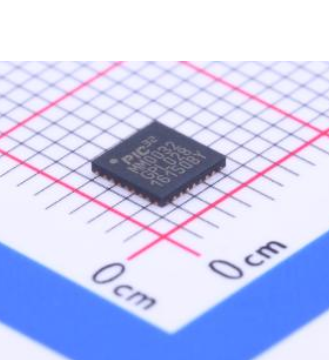

The Microchip PIC16F15323-I/JQ is an 8-bit microcontroller with a CPU speed of 32MHz. It is part of the PIC16 family of microcontrollers, specifically the PIC16F153Xx series. This particular model has a program memory size of 3.5KB and a RAM memory size of 256 bytes. With 16 pins and a UQFN MCU case style, it offers 12 I/Os for various connections. Additionally, this microcontroller is RoHS compliant, meeting environmental standards for lead-free components. The PIC16F15323-I/JQ is a versatile and efficient option for a wide range of applications, from consumer electronics to industrial automation.
Microchip Technology PIC16F15323-I/JQ's Features
It is based on an 8 - bit RISC architecture, which is optimized for C compilers. This architecture allows for efficient code execution, with a clock speed ranging from DC to 32 MHz. The minimum instruction cycle time of 125 ns ensures fast processing.
In terms of memory, it offers 3.5 KB of Flash Program Memory, which is ideal for storing the application code. There is also 256 Bytes of Data SRAM for data storage during runtime. The Memory Access Partition (MAP) feature provides enhanced security and flexibility. It can be used for write protection and to create customizable memory partitions, which is useful for applications that require secure bootloaders or data protection.
The microcontroller is equipped with multiple analog - to - digital converters (ADCs). It has a 10 - bit ADC with an extensive range of up to 43 external channels. This enables it to accurately convert various analog signals from sensors in applications such as environmental monitoring or industrial control. Additionally, it features two comparators, a 5 - bit digital - to - analog converter (DAC), and a zero - cross detect module. These components are valuable for tasks like power management, signal conditioning, and waveform generation.
Communication is made easy with its EUSART (Enhanced Universal Synchronous/Asynchronous Receiver/Transmitter) interface. This interface is compatible with common communication standards like RS - 232, RS - 485, and LIN, allowing seamless data transfer between the PIC16F15323 - I/JQ and other devices in a network.
Power management is another strong suit. It offers several power - saving modes, including DOZE, IDLE, and SLEEP. The Peripheral Module Disable (PMD) feature allows individual peripheral modules to be powered down when not in use, further reducing power consumption. This makes it suitable for battery - powered applications where minimizing power usage is crucial for extending battery life.
With its wide operating temperature range from - 40 °C to 125 °C, the PIC16F15323 - I/JQ can withstand harsh environmental conditions, making it suitable for automotive, industrial, and other demanding applications.
Microchip Technology PIC16F15323-I/JQ's Applications
The PIC16F15323-I/JQ microcontroller by Microchip Technology finds extensive use in diverse applications. In industrial control systems, its multiple PWMs and communication peripherals like EUSART and MSSP enable seamless interaction with various devices. For instance, it can control motors by precisely adjusting the pulse width, and communicate with sensors and actuators in real - time, ensuring efficient and accurate operation of industrial machinery.
In the field of consumer electronics, such as smart home devices, its low - power features are a great advantage. The device can operate in different power - saving modes like SLEEP and DOZE, reducing power consumption significantly. This is crucial for battery - powered devices, prolonging battery life. It can also manage functions like controlling the display, sensing user input, and communicating with other smart devices in the home network.
Moreover, in automotive applications, its ability to interface with multiple analog and digital peripherals makes it suitable for tasks like monitoring engine parameters through ADCs and controlling lighting systems with its GPIO pins. The reliable performance and rich set of features of the PIC16F15323-I/JQ make it a popular choice across these application areas.
Microchip Technology PIC16F15323-I/JQ's Attributes
|
Series
|
PIC16(L)F153xx
|
Product Status
|
Active
|
|
Programmabe
|
Verified
|
Core Processor
|
PIC
|
|
Core Size
|
8-Bit
|
Speed
|
32MHz
|
|
Connectivity
|
I²C, LINbus, SPI, UART/USART
|
Peripherals
|
Brown-out Detect/Reset, POR, PWM, WDT
|
|
Number of I/O
|
12
|
Program Memory Size
|
3.5 kB
|
|
Program Memory Type
|
Flash
|
RAM Size
|
256 x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
2.3V ~ 5.5V
|
Data Converters
|
A/D 11x10b; D/A 1x5b
|
|
Oscillator Type
|
Internal
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
Package / Case
|
UQFN-16
|
|
Supplier Device Package
|
16-UQFN (4x4)
|
Base Product Number
|
PIC16F15323
|
|
Manufacturer
|
Microchip
|
Product Category
|
8-bit Microcontrollers - MCU
|
|
RoHS
|
Details
|
Core
|
PIC16
|
|
Data RAM Size
|
256 B
|
Maximum Clock Frequency
|
32 MHz
|
|
ADC Resolution
|
10 bit
|
Number of I/Os
|
12 I/O
|
|
Supply Voltage - Min
|
2.3 V
|
Supply Voltage - Max
|
5.5 V
|
|
Mounting Style
|
SMD/SMT
|
Data Bus Width
|
8 bit
|
|
Minimum Operating Temperature
|
- 40 C
|
Maximum Operating Temperature
|
+ 85 C
|
|
Brand
|
Microchip Technology
|
DAC Resolution
|
5 bit
|
|
Data RAM Type
|
SRAM
|
Interface Type
|
I2C, SPI, EUSART
|
|
Moisture Sensitive
|
Yes
|
Number of ADC Channels
|
11 Channel
|
|
Product
|
MCUs
|
Product Type
|
8-bit Microcontrollers - MCU
|
|
Factory Pack Quantity
|
91
|
Subcategory
|
Microcontrollers - MCU
|
|
Tradename
|
PIC
|
Watchdog Timers
|
Watchdog Timer, Windowed
|
|
Unit Weight
|
0.006879 oz
|
Microchip Technology PIC16F15323-I/JQ's Category- 8-bit Microcontrollers
Microcontrollers are integral components in modern electronics, playing a crucial role in a wide range of applications. These small, self - contained computer systems on a chip are designed to perform specific tasks within larger electronic devices. They typically consist of a central processing unit (CPU), memory, input/output (I/O) interfaces, and various peripherals, all integrated into a single integrated circuit. In the automotive industry, microcontrollers are used for engine control, anti - lock braking systems, and entertainment systems. In consumer electronics, they power devices such as smartphones, smart TVs, and home appliances, enabling functions like touch - screen control and wireless connectivity. Industrial automation also heavily relies on microcontrollers for tasks like motor control and sensor data acquisition. The development of microcontrollers has been characterized by continuous miniaturization, increased processing power, and improved energy efficiency. Manufacturers are constantly striving to pack more functionality into smaller packages while reducing power consumption. This trend has led to the emergence of highly advanced microcontrollers capable of handling complex algorithms and multitasking. One notable microcontroller in the market is the Microchip Technology PIC16F15323 - I/JQ. It belongs to Microchip's PIC (Peripheral Interface Controller) family, which is widely recognized for its reliability and versatility. The PIC16F15323 - I/JQ offers a range of features suitable for embedded applications. It has a high - performance core, sufficient memory for code storage and data handling, and a variety of built - in peripherals. This makes it an ideal choice for developers looking for a cost - effective and efficient solution for their projects, whether it's in the fields of home automation, IoT devices, or portable electronics.
WlS Electronic has a large inventory of Microchip Technology PIC16F15323 - I/JQ. We guarantee that they are original and brand - new parts purchased directly from Microchip Technology. We can provide quality test reports for PIC16F15323 - I/JQ according to your requirements. To get a quotation, simply fill in the required quantity, contact name, and email address in the quick quotation form on the right - hand side. Our sales representatives will contact you within 12 hours. You can contact us online at any time or send us an email: SALES@WLSCHIP.COM.
