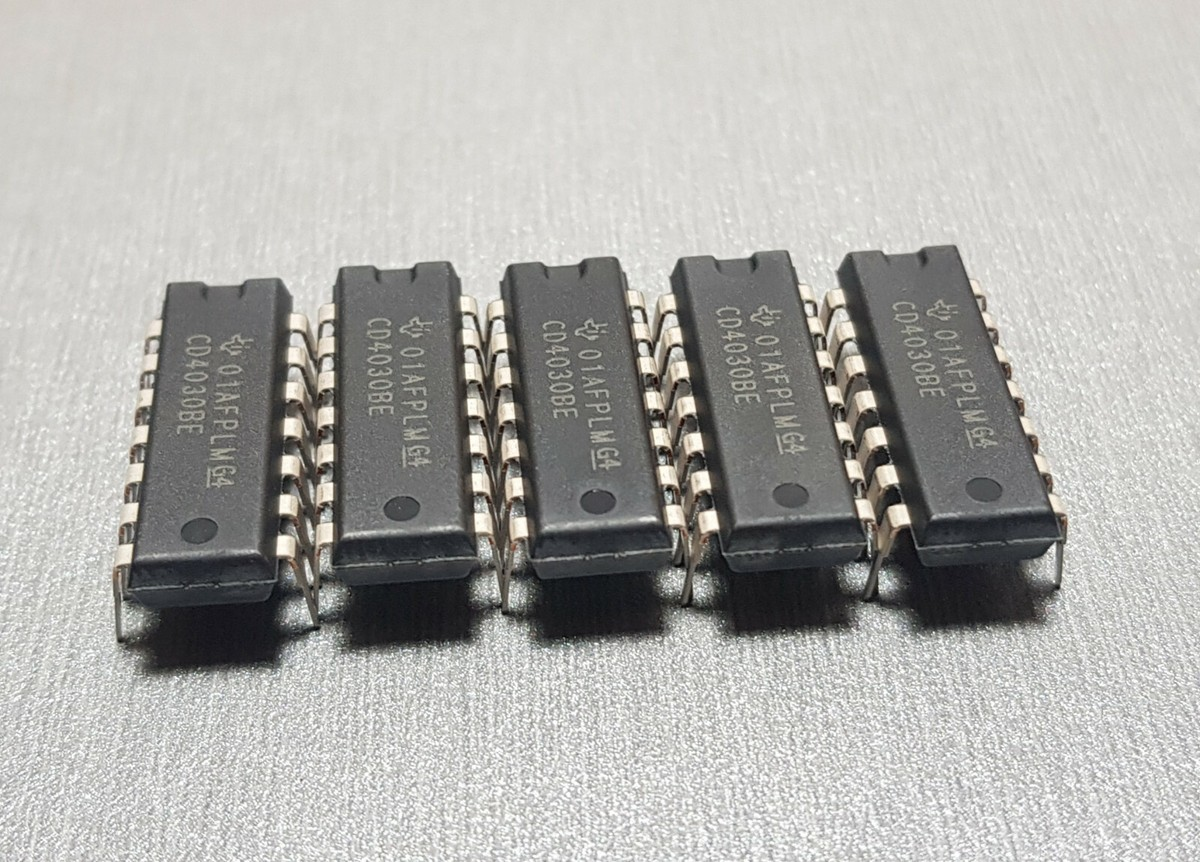

The Texas Instruments CD4030BE is a versatile integrated circuit. It consists of four independent exclusive - OR (XOR) gates, which perform logical operations crucial for data processing, error detection, and signal manipulation in digital systems. Operating over a wide supply voltage range, it offers flexibility in various circuit designs. With low power consumption and high noise immunity, the CD4030BE ensures reliable performance. Its standard dual - in - line package makes it easy to integrate into printed circuit boards, making it a popular choice for both simple and complex digital applications.
Texas Instruments CD4030BE's Features
The CD4030BE from Texas Instruments comes in a plastic dual - in - line package with multiple pin options. For instance, the 16 - pin version has specific mechanical dimensions detailed in the datasheet. All linear dimensions are measured in inches (with millimeter equivalents), which is crucial for proper integration into printed circuit boards and other mechanical assemblies. In terms of its performance - related features, though not fully elaborated in the provided data, Texas Instruments is renowned for its high - quality logic products. The CD4030BE likely adheres to strict quality standards. TI uses testing and quality control techniques to warrant its hardware products' performance according to the applicable specifications at the time of sale. However, it's important to note that TI reserves the right to make changes to its products and services without notice. Customers need to stay updated with the latest information before ordering. Also, TI doesn't assume liability for applications assistance or customer product design. When using the CD4030BE, customers should ensure they have proper design and operating safeguards in place to avoid potential risks associated with their products and applications.
Texas Instruments CD4030BE's Applications
The Texas Instruments CD4030BE, a component in TI's product lineup, finds diverse applications across multiple industries. In the field of digital logic circuits, it serves as a fundamental building block. For example, in simple digital control systems, it can be used to perform logic operations like exclusive - OR functions, which are crucial for tasks such as data comparison and error detection. In the consumer electronics industry, the CD4030BE can be incorporated into devices like remote controls. It helps process the incoming signals from the user - input buttons and translates them into the appropriate infrared or radio - frequency signals for communication with other devices. In educational electronics kits, the CD4030BE is an excellent choice for teaching basic digital logic concepts. Its straightforward functionality and ease of integration allow students to experiment with logic circuits, understand how different input combinations yield specific output results, and gain hands - on experience in digital circuit design. Given Texas Instruments' reputation for quality, the CD4030BE offers reliability and consistency in these applications, ensuring smooth operation in various systems.
Texas Instruments CD4030BE's Attributes
| Technology family |
CD4000 |
Supply voltage (min) (V) |
3 |
| Supply voltage (max) (V) |
18 |
Number of channels |
4 |
| Inputs per channel |
2 |
IOL (max) (mA) |
6.8 |
| Input type |
Standard CMOS |
IOH (max) (mA) |
-6.8 |
| Output type |
Push-Pull |
Features |
Standard speed (tpd > 50ns) |
| Data rate (max) (MBps) |
8 |
Rating |
Catalog |
| Operating temperature range (°C) |
-55 to 125 |
|
Texas Instruments CD4030BE's Category- Logic Gates
Logic gates are the fundamental building blocks of digital electronics, serving as the basis for all digital circuits and systems. These electronic circuits, constructed using components like diodes, transistors, and resistors, perform logical operations based on input signals and produce binary outputs of either 0 (low) or 1 (high). Their operations are governed by Boolean algebra, enabling the processing and manipulation of digital information. There are seven main types of logic gates. The AND gate outputs a 1 only when all its inputs are 1, performing a logical multiplication. The OR gate outputs a 1 if at least one of its inputs is 1, effectively carrying out a logical addition. The NOT gate, also known as an inverter, simply reverses the input signal. Universal gates like the NAND and NOR can be used to construct any other logic gate. The XOR gate outputs a 1 when the number of 1s in its inputs is odd, while the XNOR gate outputs a 1 when the inputs are identical. Logic gates find extensive applications across various fields. In computers, they are crucial for the operation of microprocessors, memory units, and arithmetic - logic units, enabling complex calculations and data processing. They are also integral to microcontrollers, smartphones, and other digital devices, facilitating functions such as sensor data processing and user input handling.
Texas Instruments' CD4030BE is a prime example of how logic gates are implemented in real - world components. It can be used in a variety of digital circuits where logical operations are required. Whether it's for performing simple logic functions in a consumer electronics device or being part of a more complex digital control system, the CD4030BE leverages the principles of logic gates. Its reliable performance, as expected from Texas Instruments' high - quality standards, makes it a valuable choice for engineers looking to build efficient and accurate digital systems, further emphasizing the importance of logic gates in modern electronics.
CD4030BE alternative parts: CD4070BE
| Hide Shared Attributes |
 |
 |
| Part Number |
CD4030BE +BOM |
CD4070BE +BOM |
| Manufacturer: |
Texas Instruments |
Texas Instruments |
| Description: |
TEXAS INSTRUMENTS CD4030BE XOR Gate,
4 Gate, 2 Input, 6.8 mA, 3V to 18V, DIP-14 |
IC, 4000 CMOS, 4070, DIP14, 18V |
| Lifecycle Status: |
ACTIVE (Last Updated: 1 day ago) |
ACTIVE (Last Updated: 6 days ago) |
| Factory Lead Time: |
8 Weeks |
8 Weeks |
| Contact Plating: |
Gold |
Gold |
| Mount: |
Through Hole |
Through Hole |
| Mounting Type: |
Through Hole |
Through Hole |
| Package / Case: |
14-DIP (0.300, 7.62mm) |
14-DIP (0.300, 7.62mm) |
| Number of Pins: |
14 |
14 |
| Weight: |
927.99329mg |
927.99329mg |
| Logic Level-High: |
3.5V ~ 11V |
3.5V ~ 11V |
| Logic Level-Low: |
1.5V ~ 4V |
1.5V ~ 4V |
| Number of Elements: |
4 |
- |
| Operating Temperature: |
-55°C~125°C |
-55°C~125°C |
| Packaging: |
Tube |
Tube |
| Series: |
4000B |
4000B |
| JESD-609 Code: |
e4 |
e4 |
| Part Status: |
Active |
Active |
| Moisture Sensitivity Level (MSL): |
1 (Unlimited) |
1 (Unlimited) |
| Number of Terminations: |
14 |
14 |
| ECCN Code: |
EAR99 |
EAR99 |
| Voltage - Supply: |
3V~18V |
3V~18V |
| Terminal Position: |
DUAL |
DUAL |
| Number of Functions: |
4 |
4 |
| Supply Voltage: |
5V |
5V |
| Base Part Number: |
CD4030 |
CD4070 |
| Pin Count: |
14 |
14 |
| Number of Outputs: |
1 |
1 |
| Supply Voltage-Min (Vsup): |
3V |
3V |
| Load Capacitance: |
50pF |
50pF |
| Output Current: |
6.8mA |
6.8mA |
| Propagation Delay: |
100 ns |
100 ns |
| Quiescent Current: |
5μA |
5μA |
| Turn On Delay Time: |
130 ns |
100 ns |
| Logic Function: |
XOR |
XOR |
| Number of Inputs: |
2 |
2 |
| Logic Type: |
XOR (Exclusive OR) |
XOR (Exclusive OR) |
| Max I(ol): |
0.0068 A |
0.0068 A |
| Max Propagation Delay @ V, Max CL: |
100ns @ 15V, 50pF |
100ns @ 15V, 50pF |
| Power Supply Current-Max (ICC): |
0.03mA |
0.03mA |
| Current - Quiescent (Max): |
1μA |
1μA |
| Schmitt Trigger Input: |
No |
No |
| Height: |
5.08mm |
5.08mm |
| Length: |
19.3mm |
19.3mm |
| Width: |
6.35mm |
6.35mm |
| Thickness: |
3.9mm |
3.9mm |
| REACH SVHC: |
No SVHC |
No SVHC |
| RoHS Status: |
ROHS3 Compliant |
ROHS3 Compliant |
| Lead Free: |
Lead Free |
Lead Free |
| Termination: |
- |
Through Hole |
| Max Output Current: |
- |
6.8mA |
| Number of Channels: |
- |
4 |
| Input Capacitance: |
- |
5pF |
WlS Electronic has a vast inventory of Texas Instruments CD4030BE. We assure you that these are genuine and brand - new components procured directly from Texas Instruments. Should you need it, we are able to offer quality test reports for CD4030BE. If you wish to obtain a quotation, all you need to do is fill in the required quantity, your contact name, and your email address in the quick quotation form on the right - hand side. Our sales representatives are committed to getting in touch with you within 12 hours. You have the option to contact us online at any time. Additionally, you can send us an email at: SALES@WLSCHIP.COM.
