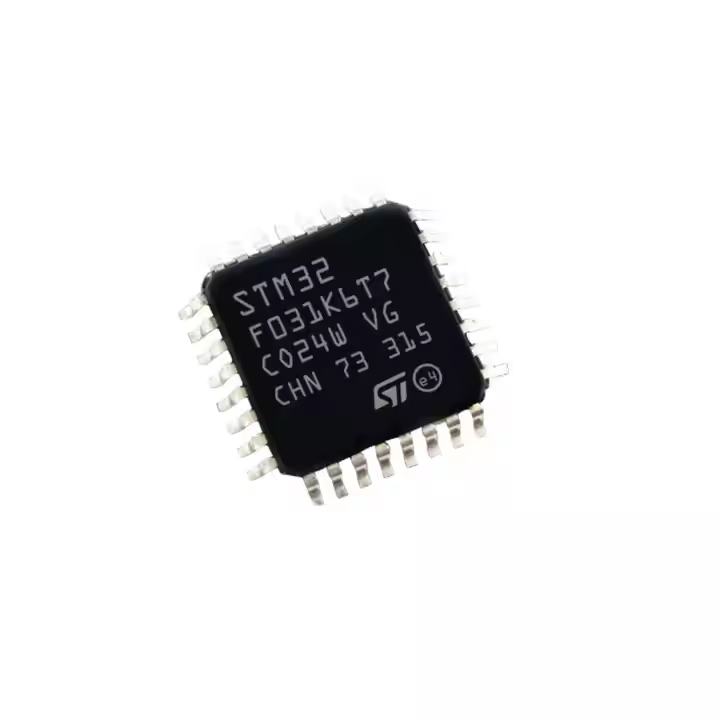

The STM32F031K6T7, designed by STMicroelectronics and part of the STM32F0 series, is a powerful and versatile microcontroller. Based on the 32-bit ARM Cortex-M0 core, it operates at a maximum frequency of 48 MHz with low power consumption, enabling efficient and reliable operation.
Why did we choose STMicroelectronics STM32F031K6T7?
The STM32F031K6T7 offers 32 KB of Flash memory and 4 KB of RAM, providing a generous program memory size for storing complex algorithms and code. With a 32-bit data bus width, it facilitates speedy data processing, making it suitable for applications requiring quick response times. The 32 pins offer ample connectivity options for various peripherals and interfaces. Ideal for diverse embedded applications such as consumer electronics, industrial automation, IoT devices, and home appliances, it also adheres to strict environmental regulations as it is RoHS compliant, ensuring minimal environmental impact. In summary, the STM32F031K6T7 balances performance, memory, and power efficiency for a wide range of embedded projects.
STMicroelectronics STM32C031K6T6's Features
- Core: ARM® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz
- Memories
- 16 to 32 Kbytes of Flash memory
- 4 Kbytes of SRAM with HW parity
- CRC calculation unit
- Reset and power management
- Digital and I/Os supply: 2.0 to 3.6 V
- Analog supply: VDDA = from VDD to 3.6 V
- Power-on/Power-down reset (POR/PDR)
- Programmable voltage detector (PVD)
- Low power modes: Sleep, Stop, and Standby
- VBAT supply for RTC and backup registers
- Clock management
- 4 to 32 MHz crystal oscillator
- 32 kHz oscillator for RTC with calibration
- Internal 8 MHz RC with x6 PLL option
- Internal 40 kHz RC oscillator
- Up to 39 fast I/Os
- All mappable on external interrupt vectors
- Up to 26 I/Os with 5 V tolerant capability
STMicroelectronics STM32C031K6T6's Applications
- The optimal solution for various applications
- Versatile for home appliances
- Great for industrial automation
- Ideal for embedded systems
STMicroelectronics STM32C031K6T6's Product Specification
| Series |
STM32F031K6 |
Product Status |
Active |
| Programmable |
Not Verified |
Core Processor |
ARM® Cortex®-M0 |
| Core Size |
32-Bit Single-Core |
Speed |
48MHz |
| Connectivity |
I²C, IrDA, LINbus, SPI, UART/USART |
Peripherals |
DMA, I²S, POR, PWM, WDT |
| Number of I/O |
25 |
Program Memory Size |
32 kB |
| Program Memory Type |
Flash |
RAM Size |
4K x 8 |
| Voltage - Supply (Vcc/Vdd) |
2V ~ 3.6V |
Data Converters |
A/D 13x12b |
| Oscillator Type |
Internal |
Operating Temperature |
-40°C ~ 105°C (TA) |
| Mounting Type |
Surface Mount |
Package / Case |
LQFP-32 |
| Supplier Device Package |
32-LQFP (7x7) |
Base Product Number |
STM32F031 |
| Manufacturer |
STMicroelectronics |
Product Category |
ARM Microcontrollers - MCU |
| RoHS |
Details |
Mounting Style |
SMD/SMT |
| Core |
ARM Cortex M0 |
Data Bus Width |
32 bit |
| ADC Resolution |
12 bit |
Maximum Clock Frequency |
48 MHz |
| Number of I/Os |
25 I/O |
Data RAM Size |
4 kB |
| Supply Voltage - Min |
2 V |
Supply Voltage - Max |
3.6 V |
| Minimum Operating Temperature |
- 40 C |
Maximum Operating Temperature |
+ 105 C |
| Analog Supply Voltage |
2.4 V to 3.6 V |
Brand |
STMicroelectronics |
| Data RAM Type |
SRAM |
I/O Voltage |
2 V to 3.6 V |
| Interface Type |
I2C, SPI, USART |
Moisture Sensitive |
Yes |
| Number of ADC Channels |
13 Channel |
Processor Series |
STM32F031 |
| Product |
MCUs |
Product Type |
ARM Microcontrollers - MCU |
| Factory Pack Quantity |
1500 |
Subcategory |
Microcontrollers - MCU |
| Tradename |
STM32 |
Watchdog Timers |
Watchdog Timer |
| Unit Weight |
0.091712 oz |
STMicroelectronics STM32C031K6T6's Category - Microcontrollers
Microcontrollers are integrated - circuit chips. They use very - large-scale integration (VLSI) technology to integrate a central processing unit (CPU) with data-processing capabilities, random-access memory (RAM), read-only memory (ROM), multiple input/output (I/O) ports, an interrupt system, a timer/counter, and other functions (which may also include circuits such as a display - driver circuit, a pulse - width modulation circuit, an analog multiplexer, and an A/D converter) onto a single silicon chip to form a small yet complete microcomputer system. They are widely used in the field of industrial control. Since the 1980s, they have evolved from the 4-bit and 8-bit microcontrollers at that time to the current high-speed microcontrollers with a speed of 300M.
