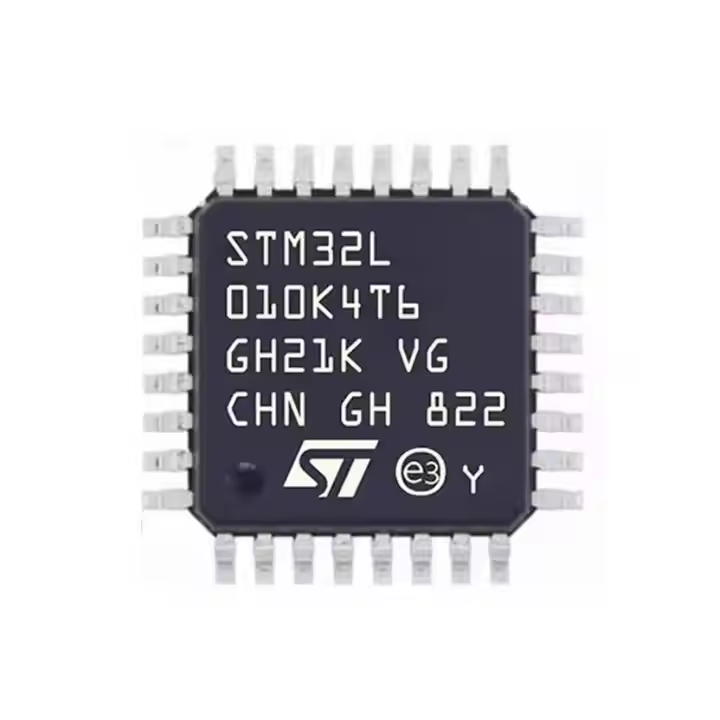

The STMicroelectronics STM32L010K4T6 is an ultra-low-power 32-bit MCU based on the Arm Cortex-M0+ core, operating at up to 32 MHz. It features 16 KB Flash, 2 KB SRAM, and 128-byte EEPROM. With standby current as low as 0.23 µA, it supports multiple low-power modes and includes a 12-bit ADC, USART, SPI, I²C, and up to 26 GPIOs (23 with 5V tolerance). Housed in an LQFP32 package, it’s ideal for battery-powered devices like IoT sensors and wearables, offering high efficiency and reliability across –40°C to 85°C.
STMicroelectronics STM32L010K4T6's Features
1. Core and Performance
Processor Core: Arm Cortex-M0+ 32-bit RISC core with up to 32 MHz clock speed, delivering 0.95 DMIPS/MHz processing performance for low-power efficiency.
Memory Configuration:
16 KB Flash program memory with sector protection (prevents accidental read/write).
2 KB SRAM for data storage and code execution.
128-byte EEPROM for non-volatile data storage.
20-byte backup registers to retain data in Standby mode.
2. Ultra-Low-Power Features
Power Supply Range: 1.8 V to 3.6 V wide voltage support for battery or multi-power scenarios.
Low-Power Modes:
Standby Mode: Typical power consumption of 0.23 µA (2 wake-up pins, no RTC); 0.54 µA with RTC enabled.
Stop Mode: 0.29 µA (16 wake-up pins, no RTC); 0.54 µA with RTC and 2 KB RAM retention.
Run Mode: Minimum 76 µA/MHz (code running from Flash), with Dynamic Voltage Scaling (DVS) adjusting core voltage across 3 ranges based on frequency.
Wake-Up Speed: 65 µs from Standby mode; as fast as 5 µs from Stop mode.
3. Clocks and Peripherals
Clock Sources:
External Clocks: 0–32 MHz high-speed external clock (HSE bypass) and 32.768 kHz low-speed external clock (LSE for RTC).
37 kHz low-speed internal RC (LSI for independent watchdog).
Multi-speed internal RC (MSI, 65 kHz to 4.2 MHz, software-calibrated).
PLL: Multiplies clock to generate up to 32 MHz system clock.
Analog Peripherals:
12-bit ADC: Up to 1.14 Msps sampling rate, 10 external channels, 41 µA power consumption at 10 ksps, supports hardware oversampling (up to 16-bit resolution).
Voltage Reference: Integrated internal voltage reference (VREFINT) for ADC calibration.
Communication Interfaces:
1 USART: Synchronous/asynchronous, up to 4 Mbit/s, hardware flow control (CTS/RTS).
1 LPUART: Low-power UART with Stop mode wake-up, operable at minimum baud rate via 32.768 kHz clock.
1 SPI: Up to 16 Mbit/s, full-duplex/half-duplex, compatible with SD/MMC protocols.
1 I²C: Supports Standard (100 kbit/s) and Fast (400 kbit/s) modes, compatible with SMBus/PMBus.
Timers and Watchdogs:
2 x 16-bit general timers (TIM2, TIM21) for input capture, output comparison, PWM generation.
Low-Power Timer (LPTIM1): Operates in Stop mode, driven by external or internal low-speed clocks.
System Timer (SysTick): 24-bit timer for OS or delay functions.
Dual watchdogs: Independent Watchdog (IWDG, LSI-based) and Window Watchdog (WWDG, system clock-based) for enhanced reliability.
4. Pins and Package

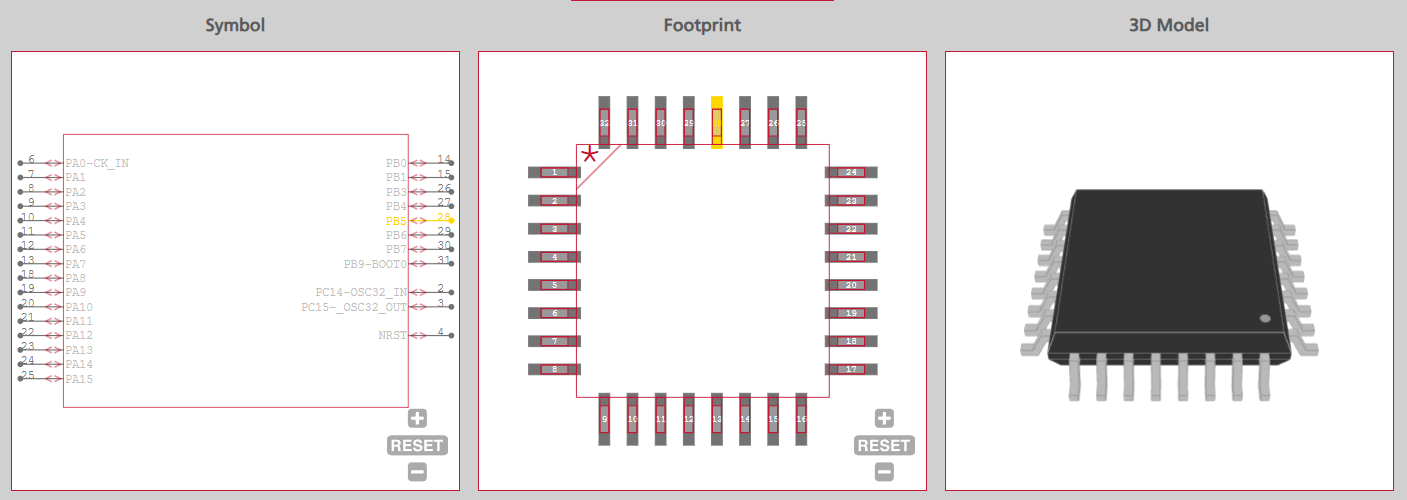

Package: LQFP32 (32 pins, 7x7 mm), supporting 26 fast I/Os, 23 of which are 5V-tolerant (FT type).
Debug and Boot:
SWD (Serial Wire Debug) interface for programming and debugging.
Pre-programmed bootloader supporting Flash reprogramming via SPI or USART.
5. Other Features
Security and Reliability:
CRC calculation unit for data integrity verification.
96-bit unique ID for device identification and security applications.
Environmental Adaptability:
Operating temperature: –40°C to +85°C for industrial and consumer electronics.
Complies with ECOPACK2 environmental standards (lead-free, halogen-free).
STMicroelectronics STM32L010K4T6's Applications
As an ultra-low-power 32-bit microcontroller in the STM32L010 series, the STM32L010K4T6 leverages its Arm Cortex-M0+ core, rich peripherals, and low-power features to suit scenarios demanding balanced power, cost, and performance. Below are its typical application domains and specific advantages:
Ultra-Low Power: 0.23 µA in Standby mode extends battery life for long-running devices, reducing replacement cycles.
Multi-Channel ADC: 12-bit ADC with 10-channel analog input captures sensor signals directly, eliminating extra conditioning circuits.
Communication Interfaces: USART/LPUART supports low-speed serial communication (e.g., RS-485); SPI/I²C connects to peripherals (EEPROM, sensor modules).
Typical Solution: LSE clock drives RTC for timed sampling; Low-Power Timer (LPTIM) triggers ADC conversion, with data transmitted via UART to gateways.
2. Wearables and Healthcare
Applications: Fitness bands, heart rate monitors, portable medical devices (glucometers).
Core Advantages:
Low-Power Operation: 76 µA/MHz in Run mode with Dynamic Voltage Scaling (DVS) enables long battery life at low frequencies.
Real-Time Clock (RTC): Supports calendar functions and periodic wake-up for precise time-stamping.
Compact Package: LQFP32 (7x7 mm) saves PCB space for compact designs.
Typical Solution: SPI connects to OLED for data display; I²C reads heart rate sensor data; enters Stop mode during idle periods to reduce power consumption.
3. Smart Home and Remote Control
Applications: Smart sockets, IR remote controls, home automation nodes (light control).
Core Advantages:
Fast Wake-Up: 65 µs from Standby mode responds to external events (e.g., button presses).
GPIO Flexibility: 23 of 26 fast I/Os support 5V Tolerant, directly driving relays or level-shifting circuits.
Security Features: CRC unit ensures data integrity; 96-bit unique ID enables device authentication.
Typical Solution: LPUART receives commands from wireless modules (Zigbee/Bluetooth); TIM generates PWM to adjust light brightness.
4. Consumer Electronics and PC Peripherals
Applications: Wireless mice/keyboards, game controllers, USB peripherals (HID devices).
Typical Solution: SPI connects to wireless transceivers; DMA transfers data to reduce CPU load, entering Low-power sleep mode when idle.
5. Industrial Automation and Monitoring
Applications: Small PLC modules, distributed I/O nodes, wired sensor networks.
Core Advantages:
Wide Temperature Range: –40°C to +85°C suits industrial environments.
Reliable Communication: USART with hardware flow control (CTS/RTS) withstands noisy industrial bus environments.
Watchdog Timers: Independent Watchdog (IWDG) and Window Watchdog (WWDG) prevent program crashes for system stability.
Typical Solution: RS-232 connects to master controllers; ADC monitors analog values (voltage/current); GPIO triggers alarms on anomalies.
6. Low-Power Wireless Sensor Networks
Applications: IoT end nodes, environmental monitors (air quality).
Core Advantages:
Multiple Low-Power Modes: 0.29 µA in Stop mode with periodic wake-up via timers extends battery life.
Flexible Clock Management: Supports MSI/LSI/LSE clock sources for optimal power reduction across modes.
DMA Controller: 5-channel DMA for ADC/SPI reduces CPU involvement in data transfer.
Typical Solution: I²C connects to temperature/humidity sensors; DMA caches data in RAM; UART transmits to gateways at intervals, entering Standby mode otherwise.
Key Value Proposition
The STM32L010K4T6 balances ultra-low power (down to 0.23 µA in Standby), cost-effectiveness, and reliable performance, making it ideal for battery-powered IoT devices, portable electronics, and industrial sensors. Its flexible peripherals and compact package enable efficient design across diverse embedded applications.
Microcontrollers serve as the core of embedded systems, integrating processor cores, memory, and peripheral interfaces. They are widely used in smart homes, industrial control, automotive electronics and other fields. Their core advantages lie in high integration, low power consumption, and programmability, allowing flexible configuration of peripherals such as ADCs, timers, and communication interfaces to meet diverse application needs.
With the development of IoT technology, microcontrollers are evolving towards ultra-low power consumption and high performance. For example, Arm Cortex-M series cores have become the mainstream choice due to their high energy efficiency ratio. Manufacturers continuously optimize processes and architectures, such as dynamic voltage scaling (DVS) and multi-power modes, enabling devices to consume as low as microamps in standby mode and extend battery life.
The STMicroelectronics STM32L010K4T6 is a typical example of such products. As an ultra-low-power microcontroller in the STM32L010 series, it is based on the Arm Cortex-M0+ core with a maximum frequency of 32 MHz, 16 KB Flash and 2 KB SRAM, and supports multiple low-power modes (only 0.23 µA in Standby mode). Rich peripherals such as 12-bit ADC, USART, SPI and I²C adapt to scenarios like sensor acquisition and serial communication. The LQFP32 package provides 26 fast I/Os, 23 of which support 5V tolerance, enhancing interface compatibility. Its low power consumption and high integration make it excel in smart meters, wearable devices and other fields, becoming an ideal choice for low-cost and long-battery-life embedded projects.
STM32L010K4T6's Manufacturer-STMicroelectronics
STMicroelectronics has achieved significant milestones in the microcontroller (MCU) domain, establishing itself as a global leader through innovation, performance, and low-power advancements.
The company’s STM32 family, built on Arm Cortex cores, revolutionized embedded systems. For example, the STM32L series (e.g., STM32L010K4T6) excels in ultra-low-power design, featuring standby currents as low as 0.23 µA and advanced power management modes. This makes them ideal for battery-powered devices like IoT sensors and wearables. Meanwhile, the high-performance STM32H7 series offers dual-core Cortex-M7/M4 architectures, targeting industrial and AI-edge applications with up to 1 GHz processing and advanced connectivity.
ST also pioneered in integrating diverse peripherals, such as 12-bit ADCs, multiple communication interfaces (USART, SPI, I²C), and robust security features like CRC units and unique 96-bit IDs. Their MCUs support wide voltage ranges (1.8–3.6 V) and temperatures (–40 to 85°C), ensuring reliability across industries.
By focusing on scalability and eco-friendliness (ECOPACK2 compliant packages), ST caters to both cost-sensitive and high-reliability markets. Their commitment to developer support, with comprehensive tools and community resources, further solidifies their position. From microcontrollers for simple consumer devices to complex industrial solutions, STMicroelectronics continues to drive innovation, balancing performance, power efficiency, and flexibility.
Comparison with Competitor Microcontrollers
The STM32L010K4T6 competes with microcontrollers from other manufacturers, such as Microchip's PIC16F series and Texas Instruments' MSP430 series. Each has strengths and weaknesses.
Feature
STM32L010K4T6
PIC16F18446
MSP430FR2433
Core
ARM Cortex-M0+
8-bit PIC
16-bit MSP430
Flash Memory
16 KB
16 KB
15.5 KB
SRAM
2 KB
1 KB
4 KB
Max Clock Speed
32 MHz
32 MHz
16 MHz
Power Consumption
76 µA/MHz (Run mode)
~100 µA/MHz (Run mode)
~100 µA/MHz (Run mode)
Peripherals
ADC, USART, I²C, SPI
ADC, USART, I²C
ADC, UART, I²C
The STM32L010K4T6 outperforms the PIC16F18446 and MSP430FR2433 in terms of processing power and peripheral integration. Its ARM Cortex-M0+ core provides better performance than the 8-bit and 16-bit cores of its competitors. Additionally, its ultra-low-power design ensures longer battery life, making it a superior choice for energy-sensitive applications.Callout: The STM32L010K4T6 offers a balanced combination of performance, power efficiency, and integrated features, making it a strong contender in the microcontroller market.
