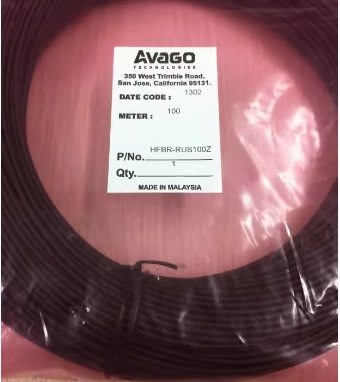

HFBR - RUS100Z is a plastic fiber optic cable from the HFBR/R/EXXYZZ series. It is constructed of a single step - index fiber sheathed in a black polyethylene jacket. The duplex fiber consists of two simplex fibers joined with a zip cord web.
HFBR - RUS100Z is a standard (Type="R") cable that fully complies with UL VW - 1 flame retardant specification UL file # E89328. This cable is available in unconnected or connected options. Refer to the Ordering Guide for part number information.
HFBR-RUS100Z's Features
- Compatible with Broadcom Versatile Link Family of connectors and fiber optic components
- 1 mm diameter Plastic Optical Fiber (POF) in 2 grades:
- Standard POF with 0.22 dB/m typical attenuation (-40°C to 85°C)
- High performance Extra Low Loss POF with 0.19 dB/m typical attenuation (-40°C to 85°C).
HFBR-RUS100Z's Applications
- Industrial data links for factory automation and plant control
- Intra-system links: board-to-board, rack-to-rack
- Telecommunications switching systems
- Computer-to-peripheral data links, PC bus extension
- Proprietary LANs
- Digitized video
- Medical instruments
- Reduction of lightning and voltage transient susceptibility
- High voltage isolation
HFBR-RUS100Z's Product Specification
| Type |
Description |
| Category |
Cables, Wires
Fiber Optic Cables |
| Manufacturer |
Broadcom Limited |
| Series |
HFBR |
| Packaging |
Bulk |
| Part Status |
Active |
| Style |
Standard |
| Type |
POF |
| Length |
328.1' (100.0m) |
| Core Diameter |
- |
| Cladding Diameter |
- |
| Jacket (Insulation) Material |
Polyethylene (PE) |
| Jacket (Insulation) Diameter |
- |
| Tensile Strength |
- |
| Attenuation - Typ |
- |
| Jacket Color |
- |
| Bend Radius |
35mm |
| Ratings |
- |
| Features |
- |
| Operating Temperature |
-55°C ~ 85°C |
| Core Material |
- |
| Cladding Material |
- |
| Base Product Number |
HFBR-RUS100 |
HFBR-RUS100Z's Category - Fiber Optic Cable
Optic Cable VS. optic Fiber
Both optical cables and optical fibers are communication media for data transmission, but they differ in structure, function, and application. Simply put, optical fiber is the core transmission medium of an optical cable, while an optical cable is the overall structure that contains optical fibers.
An optical cable is a communication cable composed of one or more optical fibers, with optical fibers serving as the transmission medium within it. To protect the optical fibers from physical damage, moisture, and other external factors, optical cables are usually wrapped with one or more layers of protective materials, such as plastic sheaths and steel wires.
Optical Fiber: An optical fiber is a slender, transparent fiber used to transmit optical signals, typically made of glass or plastic. Its function is to transmit data. It uses the reflection of optical signals in the core to move forward, enabling data transmission at extremely high speeds and over long distances.
Overall, the optical fiber is the core component for data transmission. It achieves high - speed and long - distance data transfer through optical signals. The main advantages of optical fibers are fast transmission speed, high bandwidth, and strong anti - interference ability. An optical cable is a communication cable that contains optical fibers. Besides the optical fibers themselves, it also includes reinforcing materials and protective layers to protect the optical fibers from external physical or environmental damage. The optical cable provides mechanical support and external protection for the optical fibers, ensuring their reliable operation under complex geographical and environmental conditions.
